Ultrasonic Solvent Machines - T Series
Solvac™ T1 - Sealed Solvent Cleaning System
The T1 is a twin sump solvent cleaning system designed to be operator friendly with its digital touch screen control system that gives complete flexibility when choosing your cleaning cycle. The T1 comes in one tank size that is fitted with high frequency 132 kHz ultrasonic technology giving the potential of sub-micron cleaning and delivering a very fast process time.
Basket size:
- T1 500 = 500 x 250 x 250
Typical Applications:
- Aerospace
- Automotive Industry
- High Volume precision component cleaning
- Removal of compounds from medical devices
Features:
- Crest Ultrasonics Tru-Sweep™ advanced 132 kHz technology
- Integrated refrigeration system
- Fully enclosed when in operation
- High purity filtration
- Made from high grade stainless steel
- PLC (programmable logic controller)
- Automated internal basket
- Intuitive touch screen interface
Although we stock one standard size system we can modify or build bespoke machines for individual customers requirements / applications.

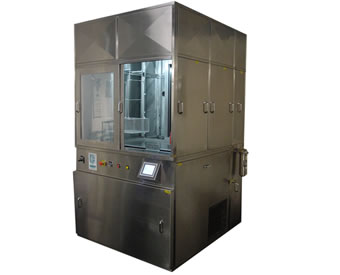

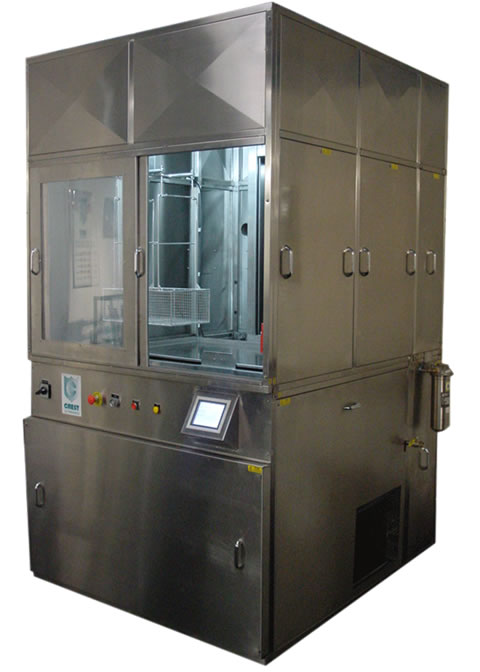

Solvac™ T2 – Fully Enclosed Solvent Cleaning System
The T2 has all the features of the T1 but with the added advantage of an Automated Basket Transfer System fitted inside the main process chamber. This device will allow the controlled movement of the basket inside the machine whilst operating under a closed lid environment. This unit will reduce the natural occurrence of solvent diffusion into the air therefore making it suitable for use with more hazardous solvents.
Basket size:
- T1 500 = 500 x 250 x 250
Typical Applications:
- Aerospace
- Automotive industry
- High Volume precision component cleaning
- Removal of compounds from medical devices
Features:
- Crest Ultrasonics Tru-Sweep™ advanced 132 kHz technology
- Integrated refrigeration system
- Fully enclosed when in operation
- High purity filtration
- Made from high grade stainless steel
- PLC (programmable logic controller)
- Automated internal basket
- Intuitive touch screen interface
- Patented LoadLock System™ air sealing chamber
- Solid state Transystem automatic handling process
Although we stock one standard size system we can modify or build bespoke machines for individual customers requirements / applications.
Solvac™ T3 - Fully Enclosed Solvent Cleaning System
The T3 has all the benefits and features of the T1 and T2 machines but is fitted with pneumatic compression sealed front loading and unloading doors giving continuous hands free operation from one roller bed to the other.
Basket size:
- T1 500 = 500 x 250 x 250
Typical Applications:
- Aerospace
- Automotive industry
- High Volume precision component cleaning
- Removal of compounds from medical devices
Features:
- Crest Ultrasonics Tru-Sweep™ advanced 132 kHz technology
- Integrated refrigeration system
- Fully enclosed when in operation
- High purity filtration
- Made from high grade stainless steel
- PLC (programmable logic controller)
- Automated internal basket
- Intuitive touch screen interface
- Patented LoadLock System™ air sealing chamber
- Solid state Transystem automatic handling process
Although we stock one standard size system we can modify or build bespoke machines for individual customers requirements / applications.
Backed by the Crest Corporation
